Monoflo SR Series Horizontal Multistage Close-coupled Centrifugal Pump
Specifications
Application
Building & residential services, industrial , agriculture & farming.
Design Features

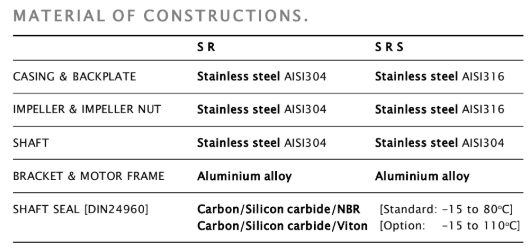

STAINLESS STEEL CONSTRUCTION
| Wetted parts are made of high quality pressed stainless steel, with options of
AISI304 or AISI316, offering not only excellent resistance to corrosion and durability; but smooth water passage hence
optimising performance.
CASING
| Designed with centreline discharged, ensuring maximum resistance to misalignment and distortion from
pipe loads. The volute casing is designed as an integral part of the pump body. Sealing between casing and pump
bracket is by means of an o-ring.
IMPELLER
| Impeller is of enclosed type, with projectionwelded blades.
SHAFT SEALING
| Mechanical seals (Ceramic/Carbon/NBR) are fitted as standard.
Depending on characteristics of liquid handled, various sealing material options are available.
HIGH EFFICIENCY ELECTRIC MOTOR
| Coupled to Totally Enclosed Fan-cooled (TEFC), aluminium-finned frame IP55 motor, with IE3 High Efficiency as standard. Motors come in single (220~230V) or three-phase (380~230V) version.
LOW MAINTENANCE & EASE IN SERVICING IF REQUIRED
Details
‘SIERA’ comprises a range of horizontal multistage close-coupled centrifugal pumps, designed to meet applications where high discharge pressure is required.
This new generation pump is a state-of-the-art line pumps, which its entire hydraulic wet-ends are manufactured from stainless steel - AISI304 or AISI316.
Adopting a unique pressing technology that revolutionised the pump design concept, coupled with stainless steel hydraulic wet-ends, leads to higher operating efficiency over a wider range of capacities and discharge pressures and lowers operating costs; which meet today’s sophisticated application requirements in the building services and the general industries.
